LM80 LEDs from Kwality polYwa - Now you can bid for Government Tenders

Kwality Photonics has switched over to manufacture & supply of LM80 certified LEDs across full range of White Power LEDs. The wide choice of LM80 certified Kwality Polywa’ LEDs, namely KLHP3535W(350mA) & KLSL5630W(150mA), KLSL2835W(60mA), KLSL3014W(30mA), KLSL3228W(20mA), KLSL3030W(150mA) LEDs, together can meet every possible design requirements, be it for LED Street lights, LED Tube lights or LED Retrofit Bulbs. In fact, supply of LM80 LEDs from Kwality have already commenced...


MORE INFO

"uniLED"- AutoBulb Launch By Dr. Farooq Abdullah

KWALITY PHOTONICS  uniLED - AutoBulb was Launched at LED SUMMIT/2013 by DR. FAROOQ ABDULLAH, Minister MNRE uniLED is India's FIRST interchangeable LED Automobile Bulb that fits into any vehicle It's priced at SAME COST as of a Branded Filament Bulb Visit us at AES Auto Engineering Show 2014 ( by Messe Frankfurt)MAY29-31, 2014. At AutoCluster Auditorium , Chinchwad Pune. First time on Display : India's First LED Auto Bulb - the uniLED R&D teams of...


MORE INFO

EFY Award-2013

KWALITY PHOTONICS Winner of EFY AWARDS 2013 in Category- LEDsWe thank you for Nominating KWALITY as India's TOP 5 BRANDS in LEDs Category - for EFY AWARDS 2012 to be presented on 15th March 2013, at Hotel Le-Meriadian, Bangalore.


MORE INFO

2835 0.2Watt & 0.5Watt & 1Watt SMD LED Chip from Kwality polyWa

NEW LAUNCH in June2016: SMD 2835 LED in 18Volts  LOW CURRENT Driver FRIENDLY (images/pdfdocs/ds_119_klsl2835w 18v.pdf) KLSL2835W  18V 30mA 0.5Watt 70 lumens 2835 0.2Watt & 0.5Watt & 1Watt SMD LED Chip - India's MOST AFFORDABLE LEDs from KWALITY PHOTONICS ! 0.2Watt 0.5 Watt Power LED: The KLSL2835W, are ideal for EVERY APPLICATION be it Tube Lights, Downlight, Lanterns & even Street Lights!; These 2835W SMD LEDs have emerged as strong contenders for down-lights,...


MORE INFO

KWALITY LED DISPLAYS

KWALITY LED DISPLAYS   Kwality Photonics P Ltd, TRUSTED manufacturer since 25 years, offers ECONOMIC SOLUTIONS in LED 7-Segment, Alpha & Dot-matrix Displays for Digital Meters, Taxi Meters & Weighing Scales Displays. Now you can successfully target lowering of the manufacturing costs of your Display Modules by switching to Kwality's ECONO-RED Digits Series in 0.56" & 0.36" and our other fast moving LED Displays. Contact Kwality Photonics or our authorised distributors...


MORE INFO

Kwality LEDs

KWALITY POLYWA -WHITE POWER LED KLHP331WE & KLHP3433WE One Watt (1.2W), Three Watt (2.5W) White LED (110-140 Lumens).


MORE INFO

LED Medium Power - Cost Effective Lighting

Medium Power SMD LEDs (KLSL5630W) for Low Cost LED Lighting KWALITY PHOTONICS have developed and released wonderful product -MEDIUM   POWER LEDs of 0.5Watt category - KLSL5630W 45Lumens @ 150mA.


MORE INFO

Mega-Efficient COB POWER LED MODULES IN 5Watt to 50 Watt

KWALITY CUTS COST OF COB POWER LEDs OF 5 Watt to 50 WATT   Kwality Photonics P Ltd announces the launching of Mega Efficient CERAMETAL LED COB Modules in 5W to 50W range. KLHC3609W/KLHC3613W in 5 to 13 Watt, KLHC3622W in 22Watt, KLHC 3650W in 50W. These LEDs have ceramics plus metal material with high thermal conductivity as the substrate and adopt silicone injection molding technology with good imperviousness performance, high reliability...


MORE INFO

Blue LED DIGITS are NOW AFFORDABLE

Blue LED Displays from Kwality Kwality Photonics Pvt. Ltd. has extended its Blue LED display product portfolio to include Single digit, Multi digit, Dotmatrix, Lightbars etc. Strict die selection and sorting prior to manufacture ensures that the new range is not only stylish and striking in appearance, but is also very consistent, meaning that multiple-digit displays can now be ...


MORE INFO

Power LEDs - ECO Ligting

LEDs run on low current and low voltage and efficiently convert electricity into light, they require less energy than conventional light sources. While incandescent bulbs emit just 3% of energy input as Light balance 97% as heat, the LEDs being 10 times more efficient than the incandescent, convert 30% of the electrical input as Visible Light, all of it is cool light free from ...


MORE INFO
0123456789

About Us


Kwality Group of Industries, Which Includes Kwality Electronics Industries And Kwality Photonics Pvt. Ltd. Is INDIA's Largest Producer of Light Emitting Diodes (LEDs), LED Displays & Opto Electronic Products.Quality Leader - Having Obtained ISO 9001:2000 And Consistently Achieving Near 100% Yields, and Range Leader - Offering Over 600 Types OF LEDs, LED Displays & Opto Electronic Product.



Our Services


Kwality Photonics Pvt Ltd. is India's leading manufacturer of LED (Light Emitting Diodes) Displays and Power LED for Solid State Lighting.Kwality Electronic Industries (KEI) established in 1987, pioneered manufacturing of Light Emitting Diodes (LEDs) and Opto Electronic Components in India. Today KEI is the largest domestic source for LEDs.



Our Products

Download the Kwality Corporate Handbook

LEDs, POWER LEDs, uniLED-AUTO BULB,LED DISPLAYS,SMD DISPLAYS,PLCC SMD LEDs,SUPER FLUX LEDs,POLYWA OVAL LEDs,POLYWA 700MA LEDs,ELECTRO OPTICAL CHARACTERISTICS.



2835 0.2Watt & 0.5Watt & 1Watt SMD LED Chip from Kwality polyWa

  • PDF

NEW LAUNCH in June2016: SMD 2835 LED in 18Volts  LOW CURRENT Driver FRIENDLY

KLSL2835W 18V LED KLSL2835W  18V 30mA 0.5Watt 70 lumens

2835 0.2Watt & 0.5Watt & 1Watt SMD LED Chip - India's MOST AFFORDABLE LEDs from KWALITY PHOTONICS !

0.2Watt 0.5 Watt Power LED:

The KLSL2835W, are ideal for EVERY APPLICATION be it Tube Lights, Downlight, Lanterns & even Street Lights!; These 2835W SMD LEDs have emerged as strong contenders for down-lights, bulbs as they bring down the costs of power LEDs by whopping 40%. With LPW (Lumens per Watt) of 130 and enhanced reliability, they help in bringing out mass use LED LIGHTS WITHIN RANGE OF TRADITIONAL LIGHT SOURCES.
for full Data & PCB Pad Layout : www.kwalityphotonics.com/products/data-sheets

Features:

  • POWER Watts : 0.2/0.5/1.0 Watts
  • CURRENT Max : 60/150 /300 mA
  • VOLTAGE Vf : 3-3.3 Volts ( 6V, 9V, 18V range- new products on request)
  • LUMEN S : 24/26 Lumens, 65 Lumens, 140Lumens
  • SIZE(LxBxH) : 2.8mm x 3.5mm x 0.75mm
  • Package Extremely wide viewing angle Available on Tape and reel. Moisture sensitivity level: Level 4 Suitable for Reflow Solder Process & SMT Assembly
  • RoHS compliant (RoHS).



Specifications:

Part No.


HOT PRODUCTS

Dice

Encapsulation @60mA

Color



Luminous intensity (mcd)

Min



Luminous intensity (mcd)

Typ



Luminous flux (lm)

Min



Luminous flux (lm)

Typ



Viewing

Angle

2q 1/2

KLSL2835W24Lm
KLSL2835W 65Lm
KLSL2835W120Lm
KLSL5630W65Lm
KLHP3030W140Lm
KLSL331W 130Lm

KLS3433W 260Lm

KLSL3228WW

WHITE & Warm White

Yellow Diffused

6500



6100

7100



6800

23
65
120
65
130
120
240

7

24
-

75
140
130
260

8

120



120


Read more...

LM80 LEDs from Kwality Polywa - Now you can bid for Government Tenders

  • PDF

Kwality Photonics has switched over to manufacture & supply of LM80 certified LEDs across full range of White Power LEDs. The wide choice of LM80 certified Kwality Polywa’ LEDs, namely KLHP3535W(350mA) & KLSL5630W(150mA), KLSL2835W(60mA), KLSL3014W(30mA), KLSL3228W(20mA), KLSL3030W(150mA) LEDs, together can meet every possible design requirements, be it for LED Street lights, LED Tube lights or LED Retrofit Bulbs. In fact, supply of LM80 LEDs from Kwality have already commenced since last 6 months to all our customers and their positive feedback are testimonials to the high quality standards achieved by Kwality Photonics. All the supplies hence forth in all above LEDs packages will be LM80 Compliant only. Now Kwality's LED customers can confidently bid for all BEE, EESL, Municipal, Panchayat or any other Government Tenders & BIS based LED indents using our High Power 3535 & 3030, Medium power 5630 & 2835 and Low power 3014 & 3228 LEDs.



Read more...
  • PDF

uniLED – LED Auto Bulb

India’s First Interchangeable LED Automobile Bulb

kwality uniLED - India's first Interchangeable LED Automotive BULB Home www.kwalityphotonics.com

Phone +914027123555 +919000081171   This e-mail address is being protected from spambots. You need JavaScript enabled to view it

KLSL5630W-60 Lumens

  • PDF

MEDIUM POWER SMD LEDs KLSL5630W for LOW COST LED LIGHTING

KWALITY PHOTONICS now Developed and released HOT product - MEDIUM POWER LEDs 0.5Watt category - KLSL5630W 60Lumens @ 150mA.


KLSL5630W-60 is designed to BRING DOWN THE COST of manufacturing and cost of
Bill of Materials (BOM) to the Lighting manufacturers.


USP of KLSL5630W is the MOST SOLDER FRIENDLY STRUCTURE- with (i) just two terminals and (ii) LONG leads suitable for manual soldering. Most of the similar models from Competitors have four small, almost invisible terminals that are difficult to manage in-house soldering.





Read more...

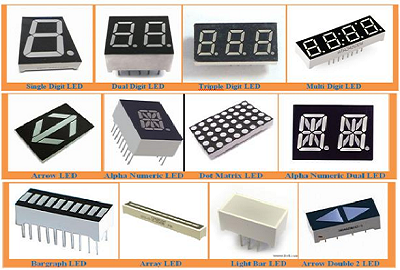

BLUE LED Displays at the Price of Bright Red displays

  • PDF

Kwality Photonics Pvt. Ltd has extended its Blue LED display product portfolio to include Single digit, Multi digit, Dotmatrix, Lightbars etc. Strict die selection and sorting prior to manufacture ensures that the new range is not only stylish and striking in appearance, but is also very consistent, meaning that Multiple-digit displays can now be manufactured to the same level of performance that customers would expect from comparable Green or Red devices.

The expanded range now includes: single-digit Seven Segment Displays (SSDs) from 7.6 to 200mm character height; dual, triple and quad SSDs in 7.6, 10 and 14mm variants.Blue dot matrix displays are available in a very wide range of alternatives with the traditional 30 and 50mm 5x7 modules proving particularly popular. There is a choice of intensity and wavelength in the range, with new variants being constantly introduced

Read more...
